City Gas Distribution Pressure Regulating Metering Skid

City Gas Distribution Pressure Regulating Metering Skid

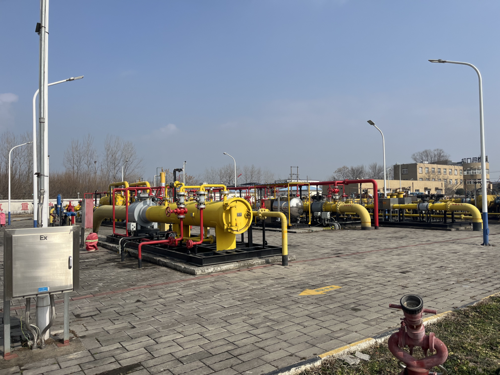

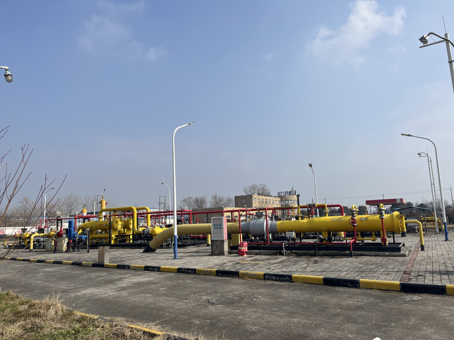

This complete natural gas skid-mounted system consists of 1 set of pig launcher & receiver skid and 1 set of filtration, metering and pressure regulating skid, fully customized for large-flow natural gas pipeline transmission projects. The integrated skid package covers full-process gas pipeline maintenance, impurity filtration, accurate flow metering and stable pressure regulation functions to meet one-stop gas station operation demands.

Matching complete core equipment is pre-assembled on skid base, including 2 sets of filter separators, 2 sets of ultrasonic flow meters, 4 sets of pressure regulators, as well as matched manifold pipes, industrial valves, precision instruments and supporting process pipelines. Rated for large gas flow up to 100000Nm³/h, this skid system adapts to inlet working pressure from 3.2MPa to 5.78MPa, with 6.93MPa design pressure and stable outlet working pressure fixed at 0.35MPa. All skid devices are factory pre-tested for pressure tightness and overall operation performance, supporting quick on-site installation and long-term stable unattended operation for natural gas trunk pipelines.

Inquire Now Next Product

Detail

Product Overview

This integrated natural gas skid-mounted station is a turnkey solution specially designed for medium and high-pressure natural gas long-distance transmission pipelines. It combines pipeline pigging maintenance function, gas impurity purification function, high-precision flow metering function and automatic pressure reducing & stabilizing function in one integrated system. All process equipment, connecting pipelines, control instruments and switch valves are pre-assembled, welded and tested in our factory, avoiding complicated on-site welding, debugging and equipment matching work. This integrated skid system can effectively ensure the safe, efficient and continuous operation of natural gas transmission pipelines, solving core pain points such as pipeline dirt accumulation, unstable gas pressure and inaccurate gas flow measurement in gas transmission projects.

Complete Supply Scope

The full supply scope of this project covers two core integrated skids with all supporting accessories, no missing spare parts, realizing plug-and-play after on-site hoisting:

1. 1 set of Pig Launcher & Receiver Skid: Used for regular pipeline pigging, cleaning wax deposits, dust and condensate inside natural gas pipelines, reducing pipeline transmission resistance and avoiding pipeline blockage.

2. 1 set of Filtration, Metering and Pressure Regulating Skid: Complete functional skid for gas purification, flow measurement and pressure regulation, equipped with full series of core process equipment:

- 2 sets of high-efficiency filter separators

- 2 sets of high-precision ultrasonic flow meters

- 4 sets of stable-performance pressure regulators

- Complete supporting manifold pipes, process pipelines, industrial control valves, pressure/temperature monitoring instruments and all connecting accessories

Core Technical Parameters（Original Project Data 100% Restored）

Item	Technical Data
Rated Gas Flow	100000Nm³/h
Inlet Working Pressure	3.2MPa ~ 5.78MPa
Design Pressure	6.93MPa
Outlet Stable Working Pressure	0.35MPa

Core Product Advantages

Integrated Turnkey Design: Two skids match perfectly with unified process logic, covering full pipeline operation links from pigging cleaning, gas filtration, flow metering to pressure regulation.
Adaptable Wide Inlet Pressure Range: Support fluctuating inlet pressure of 3.2-5.78MPa, 6.93MPa high design pressure meets high-pressure pipeline safety standards, strong pressure impact resistance.
Dual Backup Configuration: Dual filter separators and dual ultrasonic flow meters ensure uninterrupted gas supply during equipment maintenance, no need to stop pipeline operation.
Stable Pressure Output: 4 matched pressure regulators work coordinately to keep outlet pressure stably maintained at 0.35MPa, eliminating downstream pressure fluctuation risks.
Factory Pre-assembly & Full Test: All skids pass hydraulic pressure test, air tightness test and overall linkage test before delivery, greatly cutting on-site construction cycle by over 60%.
High Measurement Accuracy: Adopt ultrasonic flow meters with no mechanical wear, realizing long-term accurate gas flow metering for gas billing and data monitoring.

Application Fields

Long-distance natural gas transmission main pipeline stations
Natural gas branch line pressure regulating and metering stations
Large industrial gas supply central stations
Natural gas gate station and city gas primary pressure regulating station

Industry Compliance Standard

This series of gas skids comply with international gas pipeline standards including ISO 9001 quality management system. All pressure vessels and pressure-bearing components meet high-pressure natural gas pipeline safety requirements, adapting to outdoor harsh working environments for long-term 24-hour continuous operation.
