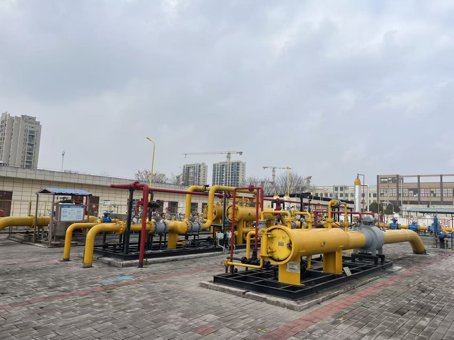

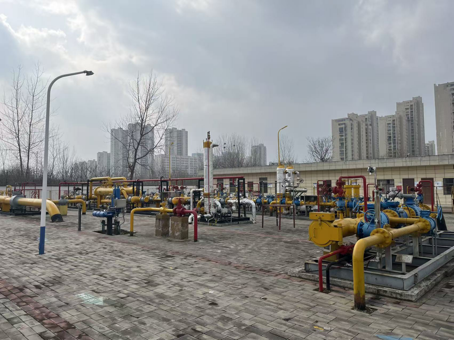

High Capacity City Gas Transmission Pressure Control Skid

High Capacity City Gas Transmission Pressure Control Skid

This medium-pressure natural gas integrated skid system consists of1 set of pig launcher skid and 1 set of filtration, metering and pressure regulating skid, customized for municipal gas distribution pipelines and medium-pressure industrial gas supply projects. It integrates pipeline pigging cleaning, gas impurity filtration, precise flow metering, temperature anti-freezing treatment and automatic pressure stabilization functions in one integrated package.

The matched regulating and metering skid is equipped with 2 vertical gas filters, 2 turbine flow meters, 2 hot water circulation heat exchangers and 4 pressure regulators, together with complete manifolds, control valves, monitoring instruments and process pipelines. Designed for a rated gas flow of 130000Nm³/h, the skid adapts to inlet working pressure from 0.6MPa to 3.5MPa, with 4.0MPa overall design pressure, and can steadily control outlet pressure below 1.45MPa. All skid components are factory pre-assembled and pressure tested, enabling fast on-site installation and stable long-term operation for medium-pressure natural gas pipeline networks.

Inquire Now Next Product

Detail

Product Overview

This integrated medium-pressure natural gas skid package is a cost-effective turnkey solution tailored for urban gas branch pipelines, industrial medium-pressure gas supply stations and conventional gas distribution stations. Combining front-end pipeline pigging maintenance skid and rear-end filtration pressure regulating metering skid, the whole set covers full-cycle daily operation demands of medium-pressure gas pipelines, avoiding the trouble of separate procurement and mismatched parameters of scattered equipment.

Aiming at common problems of medium-pressure gas pipelines such as pipeline wax deposition, gas impurity pollution, pressure drop frosting and unstable outlet pressure, this skid adopts targeted equipment configuration. The built-in heating unit solves gas temperature drop and pipeline icing caused by pressure reduction; dual filtration devices protect downstream precision instruments; matched turbine flow meters ensure accurate gas metering for billing. All equipment is centrally installed on a standard skid base, with neat pipeline layout and centralized instrument control, greatly reducing on-site installation workload and later maintenance difficulty.

Complete Supply Scope

Full set of integrated skid equipment with complete auxiliary accessories, supporting direct pipeline docking and commissioning after site arrival:

1 Set Pig Launcher SkidProfessional pipeline pigging equipment, used for regular cleaning of wax deposits, condensate and solid impurities inside natural gas pipelines. It effectively reduces pipeline transmission resistance, prevents pipeline blockage and ensures smooth and efficient gas conveying efficiency for medium-pressure pipe networks.
1 Set Filtration, Metering & Pressure Regulating Skid (Complete Main Equipment List)

2 sets Vertical Gas Filters: Remove solid particles and liquid impurities in natural gas to protect subsequent metering and pressure regulating components
2 sets Turbine Flow Meters: Realize stable and high-precision volumetric metering for medium-pressure large-flow natural gas
2 sets Hot Water Circulation Heat Exchangers: Compensate gas temperature loss during pressure reduction, prevent pipeline and valve freezing
4 sets Pressure Regulators: Realize automatic pressure reduction and stable pressure maintaining for fluctuating inlet gas pressure
Complete supporting accessories: Process manifolds, manual & pneumatic control valves, pressure and temperature monitoring instruments, integral connecting pipelines and all installation fittings

Main Technical Parameters

Parameter Item	Technical Specification
Rated Gas Flow Capacity	130000Nm³/h
Inlet Working Pressure	0.6MPa ~ 3.5MPa
Design Pressure	4.0MPa
Max Outlet Working Pressure	≤1.45MPa

Core Competitive Advantages

Reasonable Medium-pressure Safety Margin: 4.0MPa design pressure matches 0.6-3.5MPa fluctuating inlet pressure, leaving enough safety margin to cope with sudden pipeline pressure fluctuation, fully adapting to variable working conditions of urban gas pipe networks.
Dual Parallel Filtration Protection: Two vertical gas filters operate in parallel mode, which can realize online replacement without stopping gas supply, and fully filter impurities to avoid wear and failure of downstream precision flow meters.
Stable Turbine Metering Performance: Matched with professional turbine flow meters suitable for medium-pressure gas, featuring stable operation, strong anti-interference ability and long service life, meeting daily gas billing and data monitoring requirements.
Independent Circulating Heating System: Dual hot water heat exchangers eliminate frosting risk caused by pressure reduction cooling, suitable for outdoor installation in subtropical and temperate zones, ensuring year-round stable operation.
Grouped Pressure Regulation Design: 4 pressure regulators work cooperatively to realize graded pressure reduction, automatically adjust outlet pressure, and keep outlet pressure steadily below 1.45MPa without obvious fluctuation.
Cost-effective Integrated Design: Combined pigging and pressure regulating metering skid reduces overall project procurement cost. Factory pre-assembly cuts site construction period and labor cost, ideal for medium-pressure municipal gas projects.

Application Fields

Municipal medium-pressure natural gas distribution pipe network
Urban gas secondary pressure regulating station
Medium-pressure gas supply station for industrial parks and factories
Gas branch line pressure reducing and metering station

Compliance Standard & After-sales Service

This medium-pressure gas skid complies with ISO 9001 quality certification. We provide complete factory acceptance test reports, P&ID drawings, installation and operation manuals. We offer 24/7 online technical support, remote commissioning guidance and global after-sales service for all overseas gas pipeline projects.

Related Products

High Pressure Carburetor

The cryogenic liquid is discharged from the cryogenic liquid storage tank by the pressure of the storage tank itself, flows through the cryogenic liquid pump for pressurization, enters the vaporizer to be vaporized into gas, and then is filled into the cylinder through the bus.

Stainless steel material clamp type buckle type tooth embedded quick opening blind plate hydraulic type

Town Gas Pressure Regulating Box

The urban gas pressure regulating box is a standard suitable for pressure regulating boxes whose inlet working pressure is not greater than 10.0 MPa and whose operating temperature range is greater than -20°C and less than or equal to 60°C.

Gas Pressure Regulating (Metering) Box

The gas pressure regulating (metering) box is a system equipment that supplies gas to civil or industrial users, boilers, gas stoves, etc. in a certain area after filtering, pressure regulating, (metering).

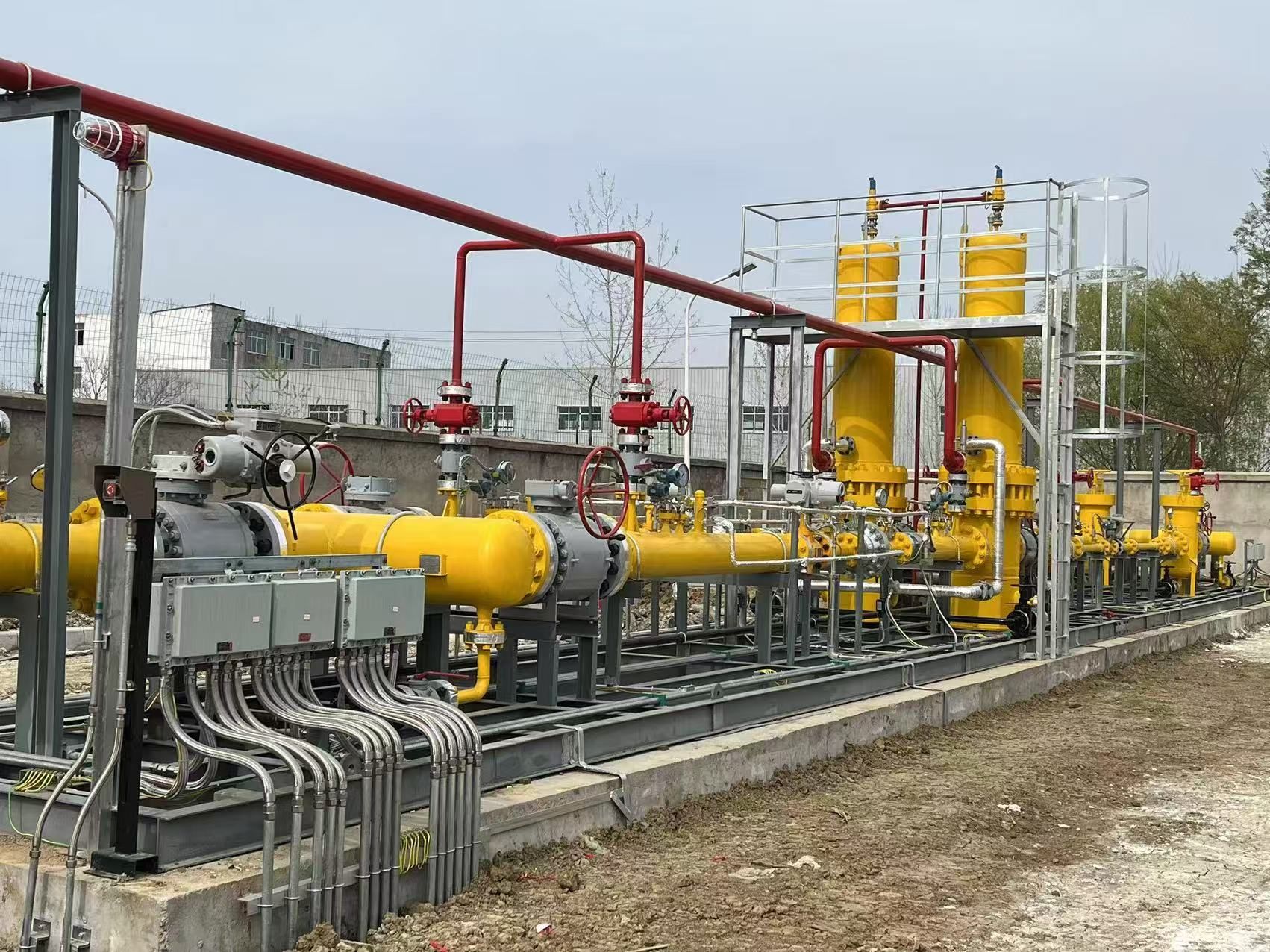

Natural Gas Pressure Regulating and Metering Skid
