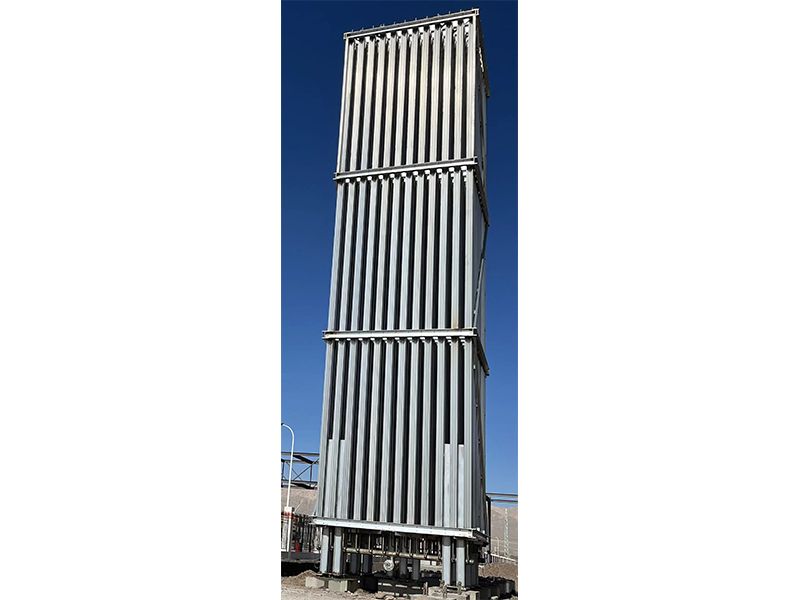

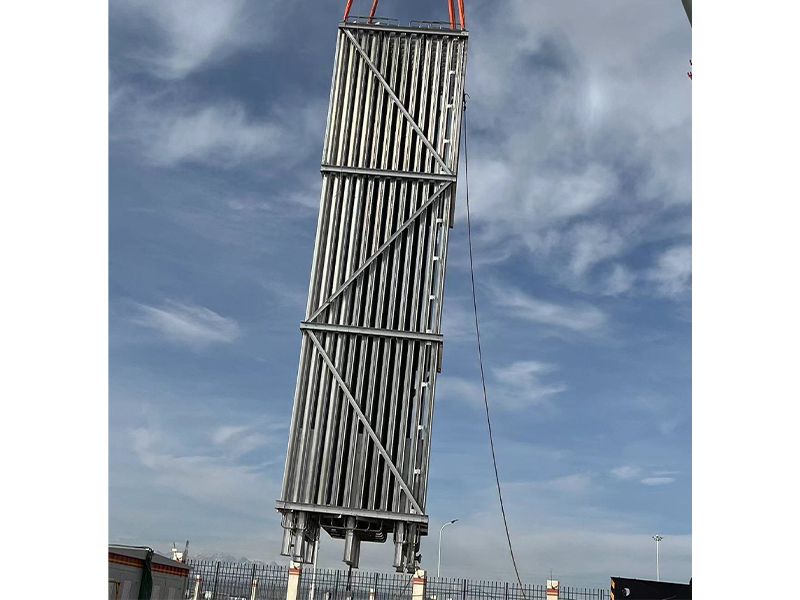

Industrial Ambient Air Vaporizer

HUAYI Industrial Ambient Air Vaporizer is designed to vaporize cryogenic liquids by using natural air convection as the primary heat source. The equipment transfers heat from the surrounding air through extended aluminum heat exchange surfaces to the low-temperature process fluid flowing inside the heat exchange tubes.

Depending on the selected configuration and operating conditions, the vaporizer can be used for LNG, LPG, liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAR), liquid carbon dioxide (LCO2), ethylene and other compatible cryogenic media.

Vaporization capacity, design pressure, heat exchange area, materials, connection sizes and operating configuration can be engineered according to the process medium, ambient conditions and project-specific requirements. Multiple vaporizer units can also be configured where higher capacity or extended operating periods are required.

Inquire Now Next Product

Detail

Product Overview

HUAYI Industrial Ambient Air Vaporizer is a cryogenic heat exchange unit designed to convert low-temperature liquids into gaseous form by absorbing heat from the surrounding air.

The vaporizer uses extended aluminum heat exchange surfaces to increase the available heat transfer area. This configuration allows the surrounding air to serve as the primary heat source without requiring continuous external heating under suitable operating conditions.

Operating Principle

Cryogenic liquid enters the vaporizer and flows through the internal pressure-bearing tubes. Heat from the surrounding air is transferred through the extended heat exchange surfaces to the process fluid, causing the liquid to vaporize and warm as it passes through the equipment.

Actual vaporization capacity depends on the process medium, ambient temperature, inlet conditions, operating pressure, required outlet conditions and continuous operating time.

Applicable Media

Depending on the selected design and material configuration, the vaporizer can be engineered for cryogenic media including:

Liquefied Natural Gas (LNG)
Liquefied Petroleum Gas (LPG)
Liquid Oxygen (LOX)
Liquid Nitrogen (LIN)
Liquid Argon (LAR)
Liquid Carbon Dioxide (LCO2)
Liquid Ethylene (LC2H4)
Other compatible cryogenic media subject to technical evaluation

Material selection, cleaning requirements and equipment configuration shall be determined according to the specific process medium and project requirements.

Vaporization Capacity

Available configurations can cover a wide range of vaporization requirements.

Based on the existing product range, single-unit nominal capacity can be configured within approximately:

10–10,000 Nm³/h

For applications requiring higher capacity or extended continuous operation, multiple vaporizer units can be arranged in parallel or in alternating operating configurations according to project requirements.

Final capacity shall be determined according to the process medium and confirmed operating conditions.

Heat Exchange Structure

The vaporizer can incorporate aluminum heat exchange elements with extended surfaces designed to increase heat transfer between the ambient air and the cryogenic process fluid.

The heat exchange area, tube configuration and overall equipment arrangement are selected according to the required capacity, process medium and environmental conditions.

Multiple-Unit Configuration

For projects requiring higher gas flow or longer continuous operation, multiple vaporizer units can be configured according to the required operating philosophy.

Possible arrangements may include:

Parallel operation for increased vaporization capacity
Alternating operation between vaporizer units
Duty and standby arrangements where required

The final configuration is determined during project engineering.

Typical Applications

Industrial Ambient Air Vaporizers can be configured for applications including:

LNG regasification systems
LPG vaporization systems
Industrial gas supply systems
Oxygen supply systems
Nitrogen supply systems
Argon supply systems
Carbon dioxide vaporization systems
Other cryogenic liquid vaporization applications

Customized Engineering

HUAYI can configure the vaporizer according to project-specific requirements, including:

Process medium
Required vaporization capacity
Inlet pressure
Design pressure
Inlet temperature
Required outlet conditions
Ambient temperature
Continuous operating time
Heat exchange configuration
Material requirements
Inlet and outlet connections
Instrumentation requirements
Installation environment

Final technical parameters and equipment configuration are determined according to the confirmed operating conditions and project specifications.

Documentation and Technical Support

Depending on the project scope, HUAYI can provide relevant technical documentation for equipment selection, manufacturing, installation and commissioning coordination.

Detailed technical parameters, drawings and project-specific documentation can be prepared after confirmation of the process medium, operating conditions and supply scope.

Related Products

Gas Equipment and Pipeline Networks

Gas equipment and pipeline networks are important facilities to ensure reliable gas supply in cities. They transport combustible media and are distributed in many places, involving the gas consumption of thousands of households.

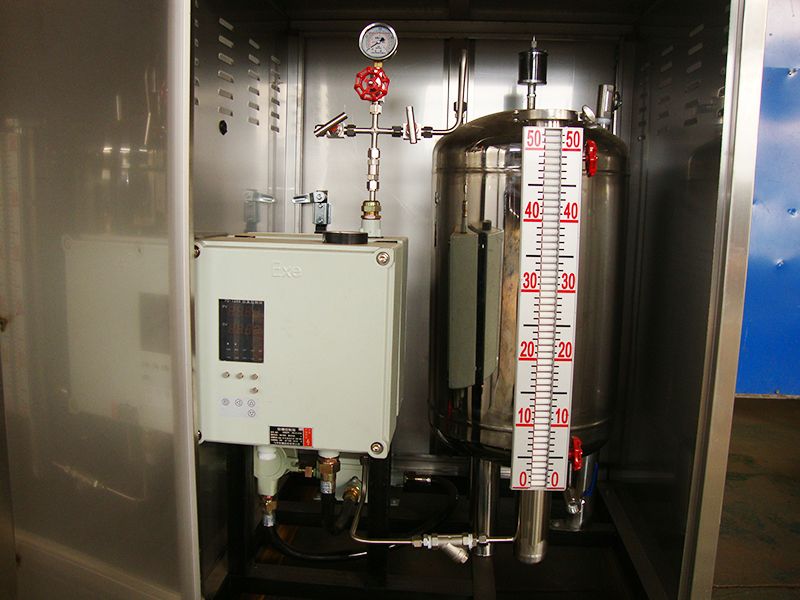

Automatic Odorizing Machine
