LPG Skid Filling Station

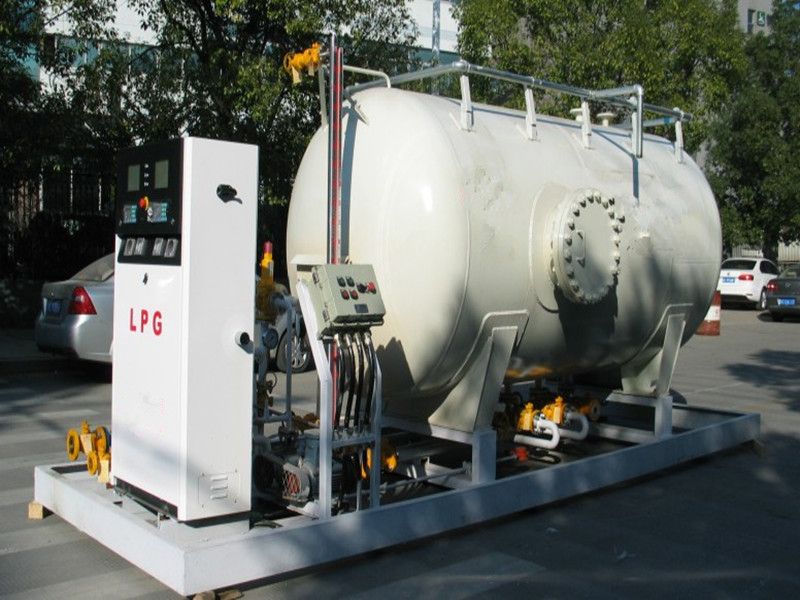

HUAYI LPG Skid Filling Station is an integrated skid-mounted system designed for LPG storage, transfer and cylinder filling applications. The system can combine an LPG storage tank, transfer pump, motor, process piping, valves, instrumentation and filling equipment within a compact equipment arrangement.

A reference configuration is based on a 5 m³ LPG storage tank and includes an LPG pump, motor, electronic filling scale, filling connections, flexible hoses, level indication, pressure and temperature instruments and associated piping and valves.

Different storage capacities and equipment configurations can be engineered according to project requirements. Tank capacity, filling arrangement, piping connections, instrumentation and other components are selected according to the required LPG handling capacity, operating conditions and applicable project specifications.

Inquire Now Next Product

Detail

Product Overview

HUAYI LPG Skid Filling Station is designed to integrate the main equipment required for LPG storage, transfer and filling into a skid-mounted or packaged configuration.

Compared with installing the storage tank, pump, piping, valves and filling equipment separately on site, an integrated equipment arrangement can simplify site installation and provide a more coordinated system layout.

The system can be configured for LPG cylinder filling and related LPG transfer applications according to the requirements of each project.

Main System Components

A typical LPG skid filling station can include:

LPG storage tank
LPG transfer pump
Electric motor
LPG filling equipment
Electronic filling scale
Liquid-phase and vapor-phase piping
Process valves and flanges
Flexible hose connections
Liquid level indicator
Pressure gauge
Temperature instrument
Filling connections
Water spray arrangement where required
Sunshade or protective structure where required
Associated piping, fittings and supporting components

Final equipment configuration depends on project requirements.

Reference Configuration

The following parameters represent a reference 5 m³ LPG skid filling station configuration:

Parameter	Reference Configuration
Storage Tank Capacity	5 m³
Reference Dimensions	Approx. 3070 × 1620 × 2210 mm
LPG Pump	YQB15-5, 1 set
Motor	5.5 kW, 380 V, 1 set
Electronic Filling Scale	BSC-150, 1 set
Filling Connections	3 sets
Flexible Hoses	Liquid-phase and vapor-phase connections
Liquid Level Indicator	Magnetic level gauge or other selected configuration
Pressure Gauge Connection	M20 × 1.5
Temperature Instrument Connection	M33 × 2
Water Spray Arrangement	Available according to project configuration
Sunshade	Available according to project configuration

These parameters are for reference only. Final dimensions, components and technical parameters are subject to project-specific engineering confirmation.

Available Storage Capacities

Different LPG storage tank capacities can be supplied according to project requirements.

Reference capacities include:

5 m³, 8 m³, 10 m³, 12 m³, 15 m³, 20 m³, 25 m³, 32 m³, 40 m³, 45 m³, 50 m³, 60 m³, 65 m³, 80 m³ and 100 m³.

Availability and final configuration should be confirmed according to the specific project.

Key Functions

LPG Storage
Provides integrated LPG storage capacity according to the selected tank size and project requirements.

LPG Transfer
The LPG pump and associated piping can be configured for transferring LPG between the storage system and filling equipment.

Cylinder Filling
The system can be equipped with filling connections and an electronic filling scale for LPG cylinder filling operations.

Level and Pressure Monitoring
Level indication, pressure gauges, temperature instruments and other instrumentation can be incorporated according to the required system configuration.

Liquid and Vapor Phase Connections
Liquid-phase and vapor-phase piping and hose connections can be arranged according to the LPG transfer and filling process.

Key Features

Integrated LPG storage and filling equipment arrangement
Skid-mounted or packaged configuration
Multiple storage tank capacities available
LPG pump and filling equipment integrated according to project requirements
Liquid-phase and vapor-phase piping arrangement
Instrumentation for operating parameter monitoring
Filling connection configuration according to application requirements
Tank capacity, piping arrangement and equipment selection can be customized

Typical Applications

The LPG skid filling station can be configured for applications including:

LPG cylinder filling facilities
Small and medium LPG filling stations
Industrial LPG supply facilities
LPG storage and transfer systems
LPG distribution facilities
Project-specific packaged LPG supply systems

Customized Engineering

HUAYI can configure the LPG skid filling station according to project-specific requirements, including:

Required LPG storage capacity
LPG handling and filling capacity
Tank dimensions and arrangement
Pump selection
Filling equipment configuration
Number and type of filling connections
Liquid-phase and vapor-phase piping
Valve and flange specifications
Instrumentation requirements
Electrical power supply
Site layout and installation requirements

Final equipment configuration is determined according to the customer's operating conditions, LPG handling requirements and applicable project specifications.

Documentation and Technical Support

Depending on the project scope, HUAYI can provide relevant technical documentation for equipment selection, manufacturing, installation and commissioning coordination.

Detailed drawings, technical parameters, equipment configuration and project-specific documentation are prepared according to the confirmed project requirements and supply scope.
