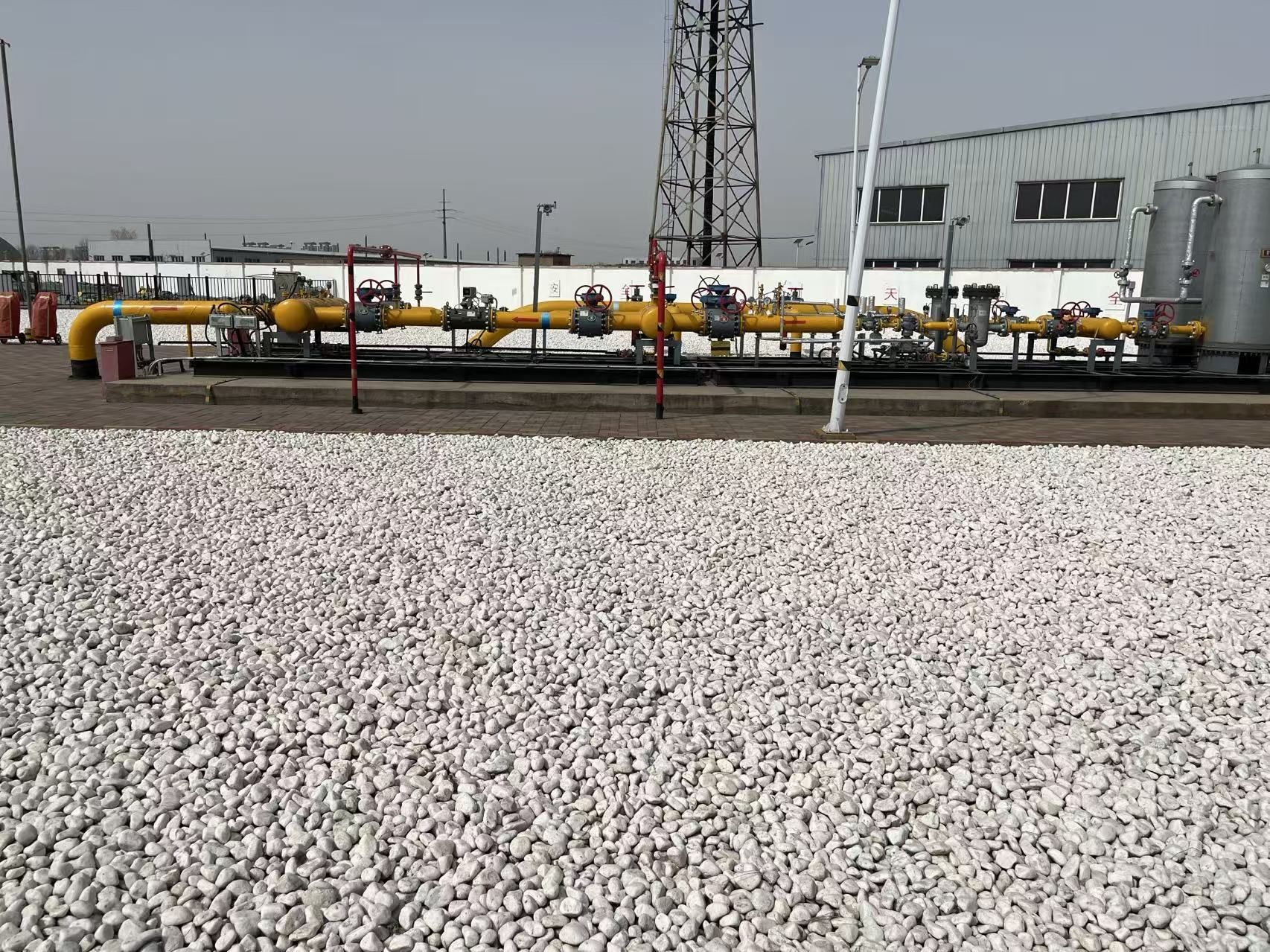

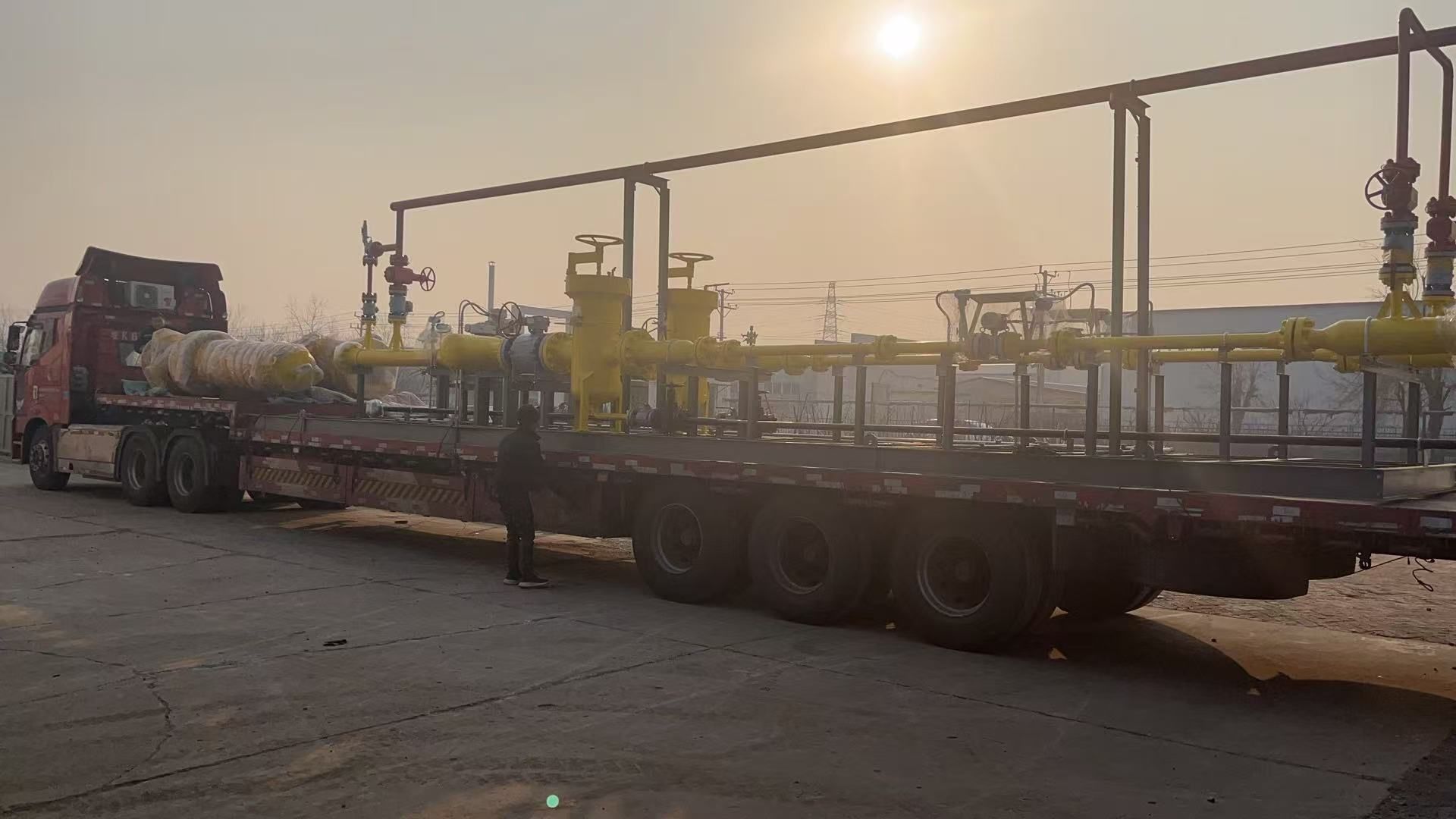

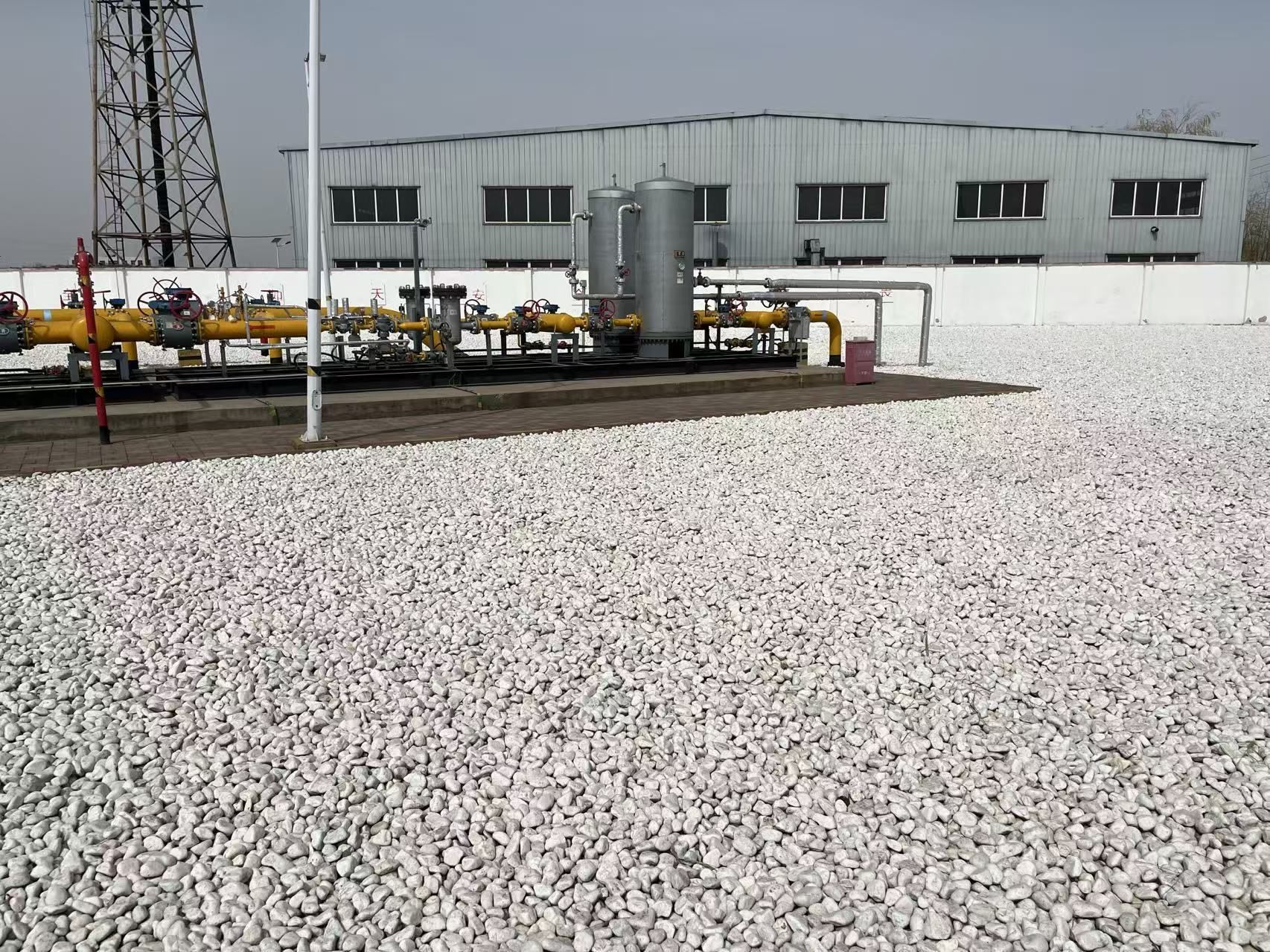

Natural Gas Pressure Regulating and Metering Skid

Natural Gas Pressure Regulating and Metering Skid

Our natural gas pressure regulating and metering skid (PRMS) is a fully integrated skid-mounted gas supply equipment, specially designed for municipal gas distribution, industrial enterprises, CNG/LNG stations and heating projects. This all-in-one unit integrates high-efficiency filter, pressure regulating valve, high-precision flow meter, emergency safety shut-off valve, pressure relief vent and control system into one fixed skid base.

Factory pre-assembled and fully pressure tested, it realizes plug-and-play on-site installation, greatly cutting construction and debugging cycle. The skid features automatic pressure stabilization, real-time gas flow metering, overpressure automatic cut-off and pressure relief functions, effectively avoiding pipeline overpressure risks. Comply with gas pipeline standards, support single-row and dual-row redundant design, adapting to continuous uninterrupted gas supply demands.

Inquire Now Next Product

Detail

1. Product Overview

Natural gas pressure regulating and metering skid, also known as PRMS, is core packaged equipment for gas transmission and distribution systems. Traditional scattered pipeline equipment requires complicated on-site welding, installation and debugging, while our integrated skid solves all pain points. All valves, instruments, flowmeters and control components are pre-installed and tested in factory, supporting one-time hoisting and quick connection on site. It mainly undertakes gas filtration, pressure reduction & stabilization, accurate flow measurement and safety protection, ensuring safe, stable and quantitative gas supply for downstream users.

2. Integrated Core Functions

- Filtration System: Remove solid impurities, dust and liquid condensate in natural gas to protect rear regulating valves and flow meters

- Automatic Pressure Regulation: Steadily reduce inlet high pressure to required stable outlet pressure, adapt to fluctuating inlet pressure and flow changes

- High-precision Metering: Support turbine/ultrasonic/rotary flow meter, realize accurate gas billing and data recording

- Full Safety Protection: Equipped with overpressure emergency shut-off valve and pressure relief valve, double safety barrier to prevent pipeline explosion risks

- Remote Monitoring Option: Optional PLC control cabinet, realize remote pressure, flow data viewing and remote alarm

3. Product Core Advantages

- Fast On-site Installation: Factory pre-assembled, no on-site pipeline cutting and welding needed, save 60% site construction time

- High Operational Safety: Meet gas safety standard, dual redundant pressure regulating design for uninterrupted gas supply

- Low Maintenance Cost: Integrated compact structure, centralized layout of all components, convenient daily inspection and parts replacement

- Strong Environmental Adaptability: Outdoor rainproof, dustproof and explosion-proof design, adapt to -40℃~60℃ harsh outdoor working environment

- Full Customization: Customize inlet/outlet pressure range, flow capacity, single/dual train structure and communication protocol as project demands

4. Main Application Scenarios

- Municipal city gas distribution station and secondary pressure regulating station

- Industrial factory, power plant, chemical plant gas supply system

- CNG decompression station, LNG vaporization and gas supply station

- Commercial shopping mall, hospital, central heating gas supply project

- Long-distance natural gas pipeline branch line pressure regulation and metering

5. Standard Compliance & After-sales Service

- Compliance Certification: GB150, ISO 9001, meet global gas industry engineering standards

- Pre-delivery Service: Provide free 3D drawing, process flow diagram and parameter selection guide

- After-sales Support: Overseas remote debugging guidance, global spare parts supply, 24/7 professional technical support
